Apartment Electrical Wiring Guide 2026: Stages, Conduit Color Codes & Smart Home Requirements
Apartment electrical wiring is the foundation that determines your home's safety for the next twenty years. A single mistake during installation — an undersized wire, two ACs on the same circuit, or missing earthing — can lead to recurring disasters. This guide takes you step by step from receiving the bare apartment shell to final testing before finishing.
Quick Answer
How is an apartment electrically wired in Egypt?
- 1.8 stages: load design → PVC conduit installation → wire pulling → distribution panel → flush boxes → testing (+ earthing if available) → finishing → handover.
- 2.PVC conduits: 16mm for lighting (max 3 conductors), 25mm for outlets and AC (4–5 conductors). Colors: grey for power, green for low-current, blue for data and smart home.
- 3.Cable sizes: 1.5mm² lighting — 2.5mm² outlets — 4–6mm² AC and water heaters. Every AC unit and every water heater on its own dedicated circuit.
- 4.Smart home: Tuya/WiFi needs a neutral wire (N) at every switch box. KNX needs KNX TP cable in dedicated blue conduits, fully separate from power circuits.
- 5.Cost (labor only): 90 EGP/m² Bronze — 110 EGP/m² Silver — 140 EGP/m² Platinum (smart home). Materials quoted separately.

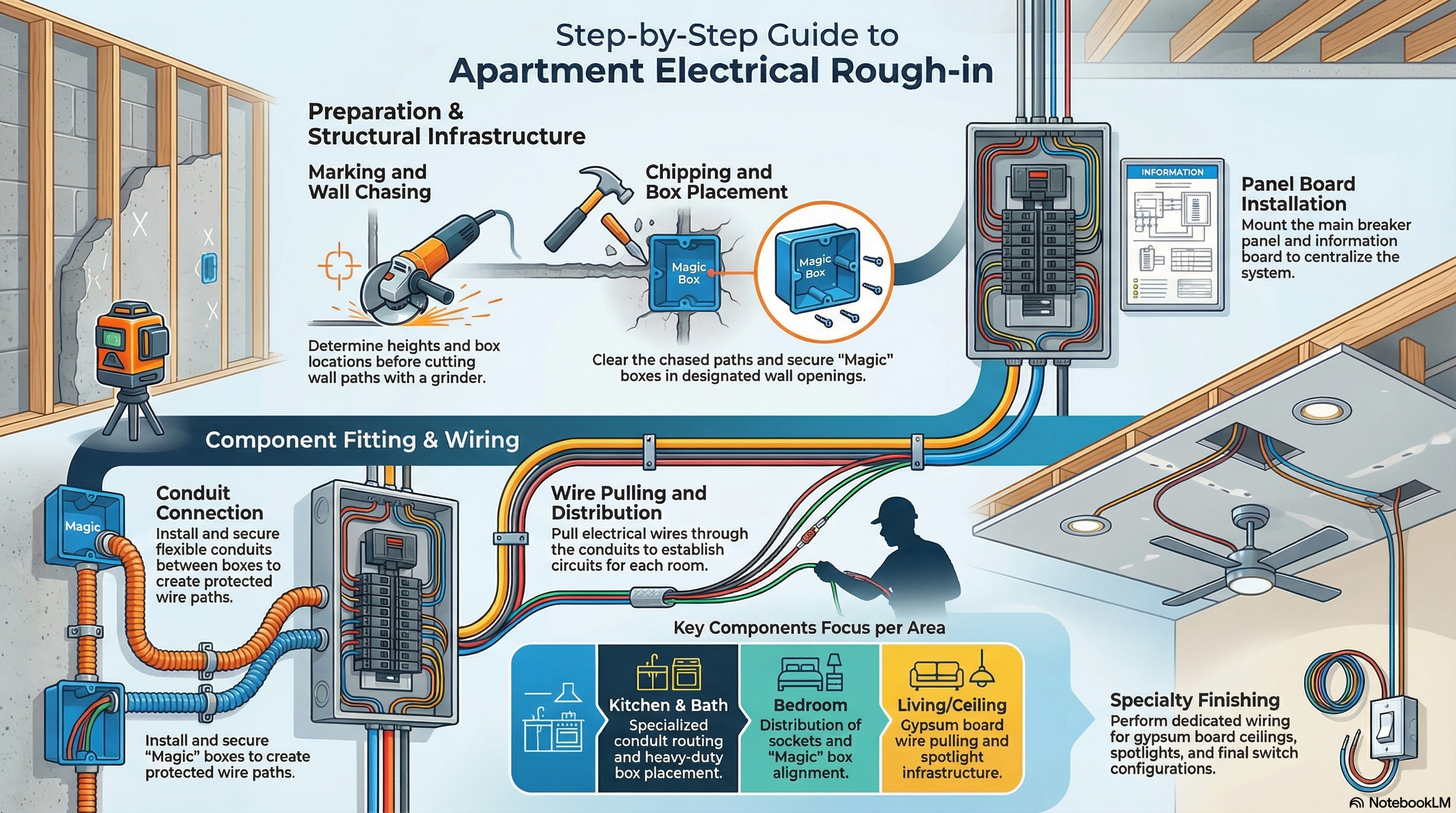

Apartment Wiring Stages
Stage 1 — Load calculation and design: Before any cutting or routing, calculate the electrical load for every room and every appliance. Determine number of circuits, wire cross-sections (1.5/2.5/4/6mm²), and panel size. This design document becomes your maintenance reference for decades.
Stage 2 — Chasing and conduit installation: Channels are cut into walls (chasing) 2–3 cm deep to embed PVC conduits. In practice, only two diameters are needed: 16mm for lighting circuits and 25mm for outlet and AC circuits. The number of conductors per conduit must comply with the Egyptian Electrical Code for Buildings (issued by HBRC — hbrc.gov.eg), which requires that total conductor cross-section not exceed 40% of the conduit's internal area — meaning a maximum of 3 conductors in a 16mm conduit and 4–5 in a 25mm conduit. Conduit color coding per international standards: Grey for standard power circuits (outlets, lighting, AC, water heaters — most common for indoor use); White for general purpose/residential indoor areas; Orange for underground/buried runs only; Red for fire alarm, emergency, and high-voltage systems; Green for telecommunications and low-current systems (CCTV, satellite/dish, sound system, intercom); Blue for data communication systems (LAN network, smart home Tuya/Sonoff, KNX TP cable). Using a distinct color per system is essential for maintenance and to prevent mixing power and data circuits. Sharp bends in the conduit run are prohibited to allow cables to be pulled through freely.
Stage 3 — Wire pulling: Certified copper cables (El-Sewedy or equivalent) are pulled through conduits. Lighting uses 1.5mm², general outlets 2.5mm², AC units 4–6mm² depending on capacity. Every AC line and water heater must have its own dedicated circuit. If the design includes a smart home system: Tuya/Sonoff (WiFi) requires a neutral wire (N) pulled to every switch box — absent in traditional wiring; skipping it makes a later smart upgrade impossible. KNX requires a dedicated data cable (KNX TP — twisted pair) run in its own separate 16mm conduits, completely independent of power circuits, connected in a line or star topology per the certified KNX programmer's design.
Stage 4 — Distribution panel installation: The recommended position is beside the apartment entrance — this is the safest location as it allows anyone to cut power immediately upon entering in an emergency without moving deeper into the unit. The panel must also be mounted high and away from the kitchen and bathroom. Thermal breakers are installed per circuit, with RCD (residual current device) protection on bathroom and kitchen circuits. The main breaker protects the entire network.
Stage 5 — Light points and outlets: Flush-mounted electrical boxes are installed with precise alignment (outlets 30–40 cm from floor, switch boxes 120–130 cm). Each room typically needs 4–6 outlets and an independent lighting circuit.
Stage 6 — Earthing and continuity testing: Egyptian reality: the majority of older apartments have no true earthing supplied from the building — this is common, not an exception. If building earthing is available, connect the earth wire (green/yellow) at every outlet to the central earthing system. If not, install a 30mA RCD (residual current device) on bathroom and kitchen circuits as a protective alternative — RCDs operate without earthing and still protect against electric shock. In all cases: test every circuit for continuity and insulation resistance before closing walls — acceptable value is above 1 megohm.
Common mistakes to avoid: connecting 3+ appliances to one circuit, using cables from unknown sources, skipping earthing, mounting outlets without flush boxes, and not testing before wall finishing.
Apartment wiring cost by size — labor only (materials quoted separately): 100m² apartment: EGP 9,000–14,000. 120m² apartment: EGP 11,000–17,000. 150m² apartment: EGP 13,500–21,000. 200m² apartment: EGP 18,000–28,000. Staircase and common areas: EGP 1,500–4,000 extra. Cable, conduit, and panel materials are added on top.
Apartment Electrical Wiring Timeline — From Bare Shell to Handover
Week −1 (Before Start)
Design & Load Calculation
Draw the electrical point layout, calculate loads for every room and appliance, and determine cable cross-sections and circuit count. This plan prevents costly rework and becomes the project's as-built documentation.
Day 1
Materials Procurement & Site Delivery
Purchase cables (El-Sewedy or equivalent), PVC conduits, panel, and breakers before any physical work begins. All materials must be on-site on day one — waiting mid-project halts work and doubles cost.
Days 1–2
Chasing & Conduit Installation
Mark cable routes on walls with chalk, then chase 2–3 cm deep channels. Fix PVC conduits — 16mm for lighting, 25mm for outlets and AC — secured every 50 cm. Conduit colors: Grey (standard power/indoor), White (general residential), Orange (underground only), Red (fire alarm/emergency), Green (telecom/low-current: cameras, satellite, sound, intercom), Blue (data/smart home: LAN, KNX, Tuya). Conductor count per conduit must comply with the Egyptian Electrical Code (HBRC — hbrc.gov.eg): max 3 conductors in 16mm, max 4–5 in 25mm. Egypt note: in new builds, coordinate conduit routes with the plumber before any cutting to avoid cross-channel conflicts.
Days 2–4
Wire Pulling
Pull copper cables through conduits: 1.5mm² for lighting, 2.5mm² for general outlets, 4–6mm² for AC units and water heaters. Every AC unit and every water heater requires its own dedicated circuit from the panel. No in-wall splices — every cable runs continuously from panel to point. Smart home: Tuya/WiFi requires a neutral wire (N) at every switch box; KNX requires a KNX TP data cable run in dedicated 16mm conduits, fully separated from power circuits.
Days 4–5
Panel Installation & Breakers
Mount the main distribution panel — recommended position is beside the apartment entrance for safety, allowing power to be cut immediately in an emergency without moving through the unit. Connect each circuit to its thermal breaker and fit RCD protection on bathroom and kitchen circuits. Connect the main earth cable to the earthing rod.
Days 5–6
Flush Boxes & Earthing
Install outlet and switch boxes with precise alignment (outlets 30–40 cm from floor, switches 120–130 cm). If building earthing is available: connect the earth wire to every box. If not — the common situation in most Egyptian apartments — install a 30mA RCD on bathroom and kitchen circuits as a protective alternative. Do not close walls before all tests are complete.
Days 6–7
Pre-Closing Testing
Test continuity of every circuit and insulation resistance of at least 1 megohm on every cable. Test earthing at every point. This is the most important test in the project — any fault is fixed now, before walls are plastered. Egypt tip: request a written test report before allowing the plasterer to close the walls.
After Plastering & Painting
Electrical Finishing & Final Handover
After plastering and painting are complete: install outlets, switches, and lighting, make final panel connections, and test every point with the client present. Handover includes a report with the panel diagram, materials list, and warranty terms.
Total Duration (Foundation + Finishing) by Property Type
FAQ
What does smart home apartment wiring require in Egypt?
Wiring an apartment for smart home needs extra prep during the rough-in phase: (1) Neutral wire (N) at every switch box — absent in traditional wiring; required for Tuya/Sonoff smart switches. (2) Dedicated 16mm blue conduits for KNX TP or LAN cables — must never mix with power circuits. (3) Power outlet + data point inside the ceiling at every camera location. (4) Dedicated outlet near the panel for the Hub or Gateway. (5) Separate 16A circuit for an EV charger if a garage or ground floor is involved. Cost difference vs. standard wiring: 20–40% higher labor, with smart devices added separately after finishing.
How is an apartment electrically wired in Egypt — step by step?
Apartment electrical wiring in Egypt follows 8 stages: (1) Load calculation and circuit design. (2) Wall chasing and PVC conduit installation (16mm for lighting, 25mm for outlets). (3) Pulling copper cables (1.5mm² lighting, 2.5mm² outlets, 4–6mm² AC units). (4) Distribution panel installation beside the entrance. (5) Flush box installation. (6) Continuity and insulation resistance testing before wall closing. (7) Electrical finishing after plastering. (8) Final testing and handover. Total duration for a 100–120m² apartment: 10–16 working days. Labor cost: 90–140 EGP/m².
How long does wiring a 150m apartment take?
A 150m apartment typically takes 7–12 working days with a team of 2–3 technicians, including chasing, routing, and testing phases. Duration depends on the number of electrical points and design complexity.
What's the difference between foundation wiring and electrical finishing?
Foundation wiring (تأسيس) is embedding cables, conduits, and boxes inside walls before plastering. Finishing (تشطيب) is installing outlets, switches, lighting, and final connections after plastering and painting are complete.
What certified materials should be used in Egypt?
Certified materials include El-Sewedy cables or equivalent from approved manufacturers meeting NFPA or BS standards, Elhaggar PVC conduits or equivalent, steel or heavy-duty PVC electrical boxes, and Schneider or ABB distribution panels.
How do I verify wiring quality before wall closing?
Before closing walls: verify conduit thickness (doesn't crack when bent), all cables fully pulled with no in-wall splices, continuity test passes on every circuit, and insulation resistance exceeds 1 megohm.
Do I need an electrical engineer or is a technician enough?
For standard apartments (under 200m²), a skilled electrician is sufficient, but an engineer for the design and load calculation phase is recommended. For villas, buildings, and three-phase projects, an electrical engineer is mandatory.
What are warning signs that a contractor is cutting corners in Egypt?
Red flags: (1) Refuses to do a load calculation — says 'we'll do it the usual way'. (2) Buys cables from an unknown El-Ataba shop instead of documented El-Sewedy supply. (3) Won't perform an insulation resistance test before closing walls. (4) Connects the AC unit to the general outlet circuit instead of a dedicated line. (5) Connects the earth wire to the neutral instead of a real earthing rod (false earthing). These shortcuts are deliberately hard to detect after walls are plastered.
How long does a complete electrical installation take from bare shell to handover in Egypt?
From bare shell to final handover, a 100–120m² apartment typically takes 10–16 working days split across two phases: 6–10 days for foundation wiring (before plastering) and 4–6 days for finishing (after plastering and painting). These phases are separated by the plastering period, which can be 2–4 weeks. The full project from start to occupancy usually spans 4–8 calendar weeks depending on plastering and painting speed.
What must be done before the plasterer closes the walls?
Before the plasterer seals the walls you must have: (1) All conduits and cables fully installed with no in-wall splices. (2) Insulation resistance test ≥1 megohm on every circuit — get a written result. (3) Earth continuity confirmed at every outlet and switch box. (4) Flush boxes fixed and aligned at final finish height. (5) Panel connected with all circuits labeled. Once walls are plastered, correcting faults requires demolition.
